MSI PM8M-V Micro ATX Motherboard
Jump to navigation
Jump to search
Overview
Micro ATX motherboard made by MSI. It has CPU "Socket 478".
lspci output
lspci -nn
00:00.0 Host bridge [0600]: VIA Technologies, Inc. P4M800 Host Bridge [1106:0296] 00:00.1 Host bridge [0600]: VIA Technologies, Inc. P4M800 Host Bridge [1106:1296] 00:00.2 Host bridge [0600]: VIA Technologies, Inc. P4M800 Host Bridge [1106:2296] 00:00.3 Host bridge [0600]: VIA Technologies, Inc. P4M800 Host Bridge [1106:3296] 00:00.4 Host bridge [0600]: VIA Technologies, Inc. P4M800 Host Bridge [1106:4296] 00:00.7 Host bridge [0600]: VIA Technologies, Inc. P4M800 Host Bridge [1106:7296] 00:01.0 PCI bridge [0604]: VIA Technologies, Inc. VT8237/VX700 PCI Bridge [1106:b198] 00:0f.0 RAID bus controller [0104]: VIA Technologies, Inc. VIA VT6420 SATA RAID Controller [1106:3149] (rev 80) 00:0f.1 IDE interface [0101]: VIA Technologies, Inc. VT82C586A/B/VT82C686/A/B/VT823x/A/C PIPC Bus Master IDE [1106:0571] (rev 06) 00:10.0 USB controller [0c03]: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller [1106:3038] (rev 81) 00:10.1 USB controller [0c03]: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller [1106:3038] (rev 81) 00:10.2 USB controller [0c03]: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller [1106:3038] (rev 81) 00:10.3 USB controller [0c03]: VIA Technologies, Inc. VT82xxxxx UHCI USB 1.1 Controller [1106:3038] (rev 81) 00:10.4 USB controller [0c03]: VIA Technologies, Inc. USB 2.0 [1106:3104] (rev 86) 00:11.0 ISA bridge [0601]: VIA Technologies, Inc. VT8237 ISA bridge [KT600/K8T800/K8T890 South] [1106:3227] 00:11.5 Multimedia audio controller [0401]: VIA Technologies, Inc. VT8233/A/8235/8237 AC97 Audio Controller [1106:3059] (rev 60) 00:12.0 Ethernet controller [0200]: VIA Technologies, Inc. VT6102 [Rhine-II] [1106:3065] (rev 78) 01:00.0 VGA compatible controller [0300]: VIA Technologies, Inc. KM400/KN400/P4M800 [S3 UniChrome] [1106:7205] (rev 01)
Replacement Parts
Transistors
| Legend | Marking | Replacement Part |
|---|---|---|
| Q12 | NIKOS P07D03LVG A5725441 | ST STS8DN3LLH5 |
Capacitors
MS-7104 VER:1.0
| Legend | Quantity | Lead Spacing | OD | Height | Marking | Replacement Part |
|---|---|---|---|---|---|---|
| CT9,CT11,EC2-E14,EC16 | 16 | 3.5mm | 8.2mm / 0.33" | 15.6mm / 0.61" | TEAPO 1000uF 6.3V | Panasonic EEU-FR1A102L |
| CT2-CT4 | 3 | 5mm | 10.2mm / 0.40" | 25.4mm / 1.00" | ? 3300uF 6.3V | Panasonic EEU-FR0J332LB |
| CT1,CT5,CT10 | 3 | 5mm | 10.2mm / 0.40" | 16.0mm / 0.63" | Murata? 1500uF 6.3V | Panasonic EEU-FR1A152 |
| CT6-CT8 | 3 | 5mm | 10.2mm / 0.40" | 21.3mm / 0.84" | Murata 1500uF 16V | Panasonic EEU-FR1C152 |
| EC15 | 1 | 2.5mm | 6.2mm / 0.24" | 11.7mm / 0.46" | 470uF TEAPO 10V | Rubycon 10ZLQ470MEFC6.3X11 |
| EC1 | 1 | 2.5mm | 6.5mm / 0.25" | 11.3mm / 0.45" | (F?)Luxon 100 uF 25V | Rubycon 25ZLG100MEFC6.3X11 |
Online Resources
MSI MS-7104 User's Manual (G52-M7104X1)
MSI MS-7104 MOTHERBOARD INSTALLATION MANUAL | ManualsLib (same document as above, watermarked by ManualsLib)
MSI MS-7104 (ver. 2.A) - The Retro Web
MSI MS-7104 (ver. 3.x) - The Retro Web
MSI MS-7104.rar - Google Drive (Schematics)

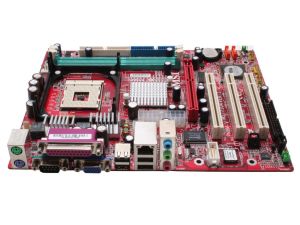

MSI PM8M-V Socket 478 Micro ATX Intel Motherboard - Newegg.com (source of V1.0 photo)

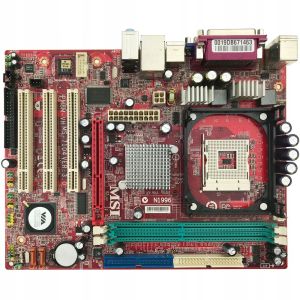

MSI PM8M-VH ver.3.0 , Socket 478 , Intel Motherboard | eBay (source for V3.0 stock photo)
