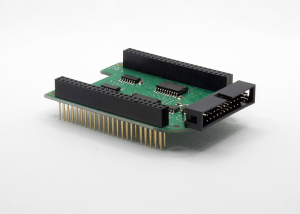

HALaser LP8 Extension Board

Overview

Fiber laser control interface "cape" for the HALaser E1701D. It allows controlling the fiber laser's power and enable as well monitoring the status.

Wiring Diagram

• Page 39 shows the 26-pin IDC / 25-pin D-Sub fiber laser source control interface pinout

Online Resources

HALaser Systems - Laser Marking Engraving Etching and Cutting Software - Scanner Controller Cards - An Industry 4.0 Company

HALaser Systems E1701 Modular Scanner Controller Users Manual (06/2022)
